MC-100
Engine Driven Van Air Conditioner

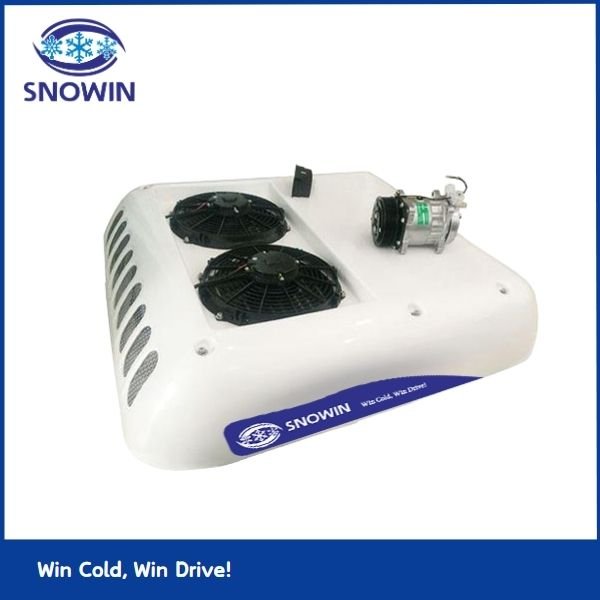

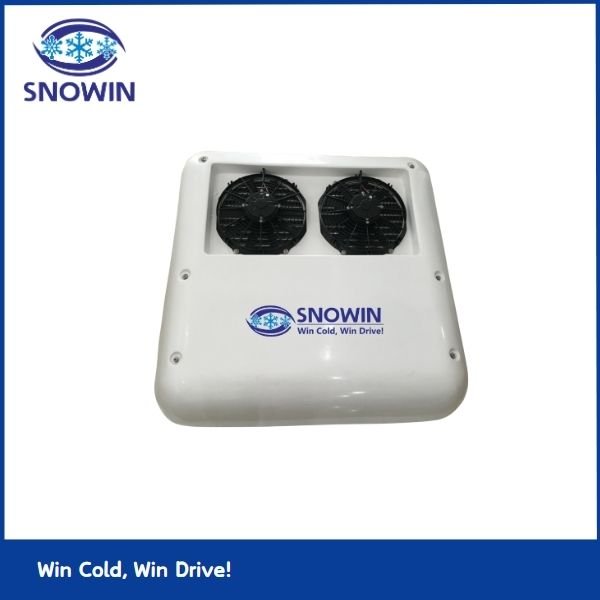

MC100 is a 10KW rooftop engine driven van AC unit for minibuses and caravans. Fast cooling, high airflow, and reliable design for harsh environments.
The MC100 is a high-performance engine driven van AC unit with 10KW cooling capacity, specially designed for minivans, 6–7.2m minibuses, and caravans. It features a low-profile rooftop design, fast cooling speed, and robust construction—ideal for long trips or commercial passenger transport.
Whether you’re upgrading a camper, tour bus, or people mover, the MC100 van air conditioner delivers strong performance and comfort in all conditions.
Technical Specifications:
| Model | MC100 |
|---|---|
| Cooling Capacity | 10KW |
| Voltage | DC12V / 24V |
| Installation Type | Integrated Rooftop Mounted |
| Driven Type | Vehicle Engine Driven |
| Refrigerant | R134a |
| Temperature Setting | As low as 16°C |
| Compressor | TM16 (Valeo) |
Condenser:
- Type: Parallel Flow
- Fan Quantity: 2
- Air Flow Volume: 3800m³/h
- Fan Type: Axial Flow
Evaporator:
- Type: Copper Pipe + Aluminum Fin
- Blower Quantity: 2
- Air Flow Volume: 2000m³/h
- Blower Type: Double Axle, Centrifugal Flow
| Unit Dimensions | 1010 × 975 × 180 mm |
Key Features:
- ✅ Dimensions: 1010×975×180mm – Compact and low-profile for easy rooftop mounting
- ✅ Attractive Design – Tailored for MVPs (Multi-purpose Vehicles) and caravans
- ✅ 10KW Cooling Capacity – Powerful cooling performance for large van spaces
- ✅ Rooftop Integrated Type – Saves cabin space and simplifies installation
- ✅ Environmentally Friendly R134a Refrigerant
- ✅ Engine Driven Design – No need for an independent generator
- ✅ Valeo Compressor (TM16) – Reliable performance with global parts support
- ✅ Brushless Blower & Fans – Longer service life and lower noise
- ✅ Quick Cooling – Comfortable cabin within minutes
- ✅ Professional After-Sales Support – 2-year warranty coverage
